Solution

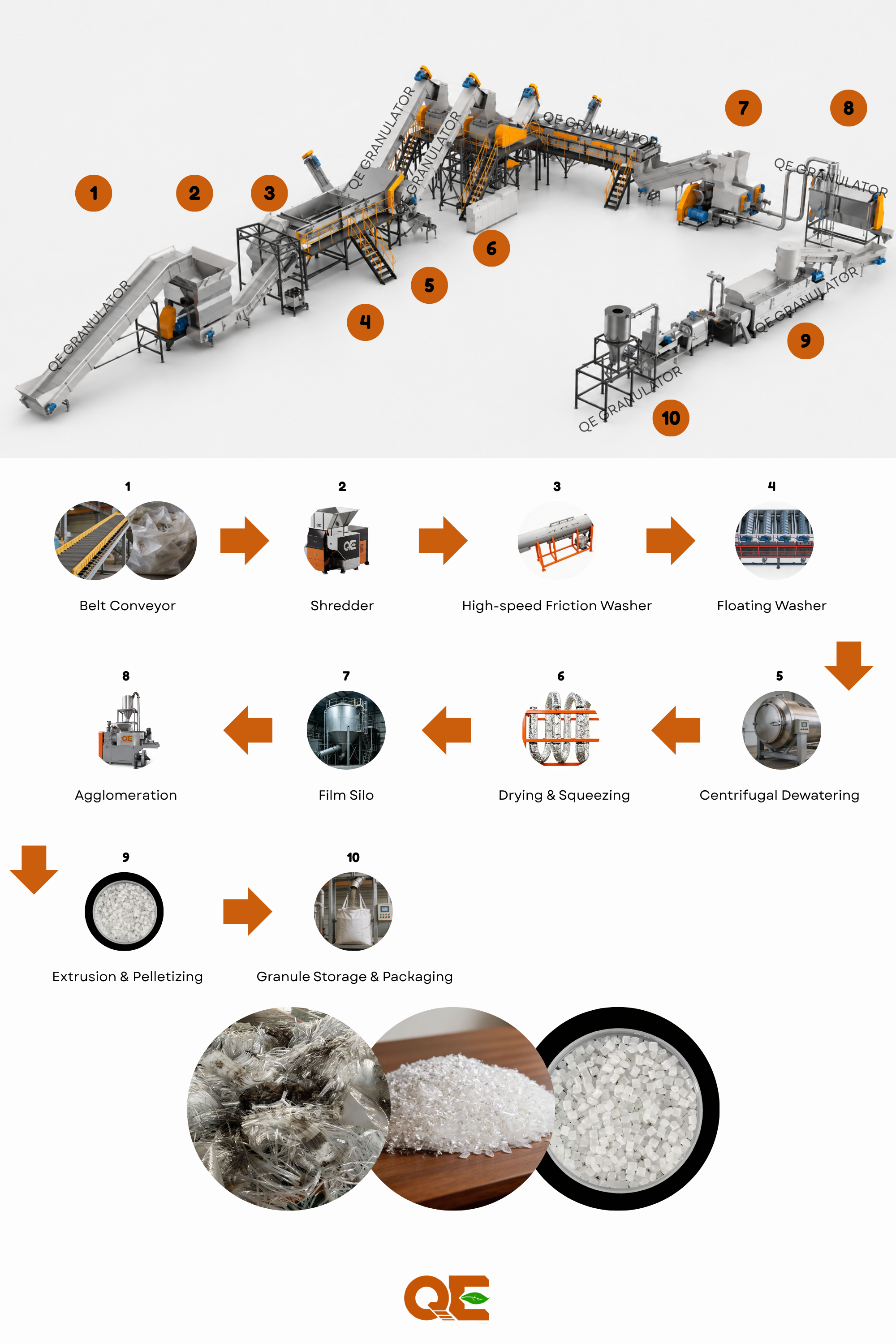

PP/PE Film Washing System

Applications

· Agricultural film

· Sorting film for urban domestic waste

· Decomposed garbage

· Market film

· Binding bag

Features

Suitable for various films and woven bags with a sediment content of up to 80%
Using recycled water to ensure cleaning effectiveness while controlling water flow and evaporation volume
The core part of the pre-treatment module adopts wear-resistant design to ensure the system can operate continuously for a long time
The pre-crushing and pre-washing system efficiently removes most sediment and other impurities, protecting subsequent equipment and significantly increasing the service life of the fine crushing and cleaning system
The fine crushing system is specially designed, with uniformly sized films that are easy to clean after crushing
The high-speed centrifugal cleaning system applies the most suitable rotational speed to apply corresponding blade hitting force to different materials to achieve the best cleaning effect
The cleaning tank drum is designed for strong underwater cleaning, maximizing the removal of residual impurities; the claw-type uniform discharge ensures uniform output while controlling moisture content, providing a process foundation for the dehydration module
The combined film drying technology of centrifugal dehydration, screw extrusion and high-temperature hot air strictly controls the final moisture content within 5%, suitable for high-quality granulation requirements
After theoretical calculations and multiple measurements, the mechanical operation details of the crushing, cleaning and drying stages were adjusted to avoid material loss due to excessive processing
The entire line is automatically controlled, with the interconnection operation of each unit, maximizing production capacity while having the ability to predict possible abnormal situations, and maximizing the safety of the system
· Corresponding granulation systems can be equipped according to production requirements
