Disc Pulverizer
Disc pulverizer

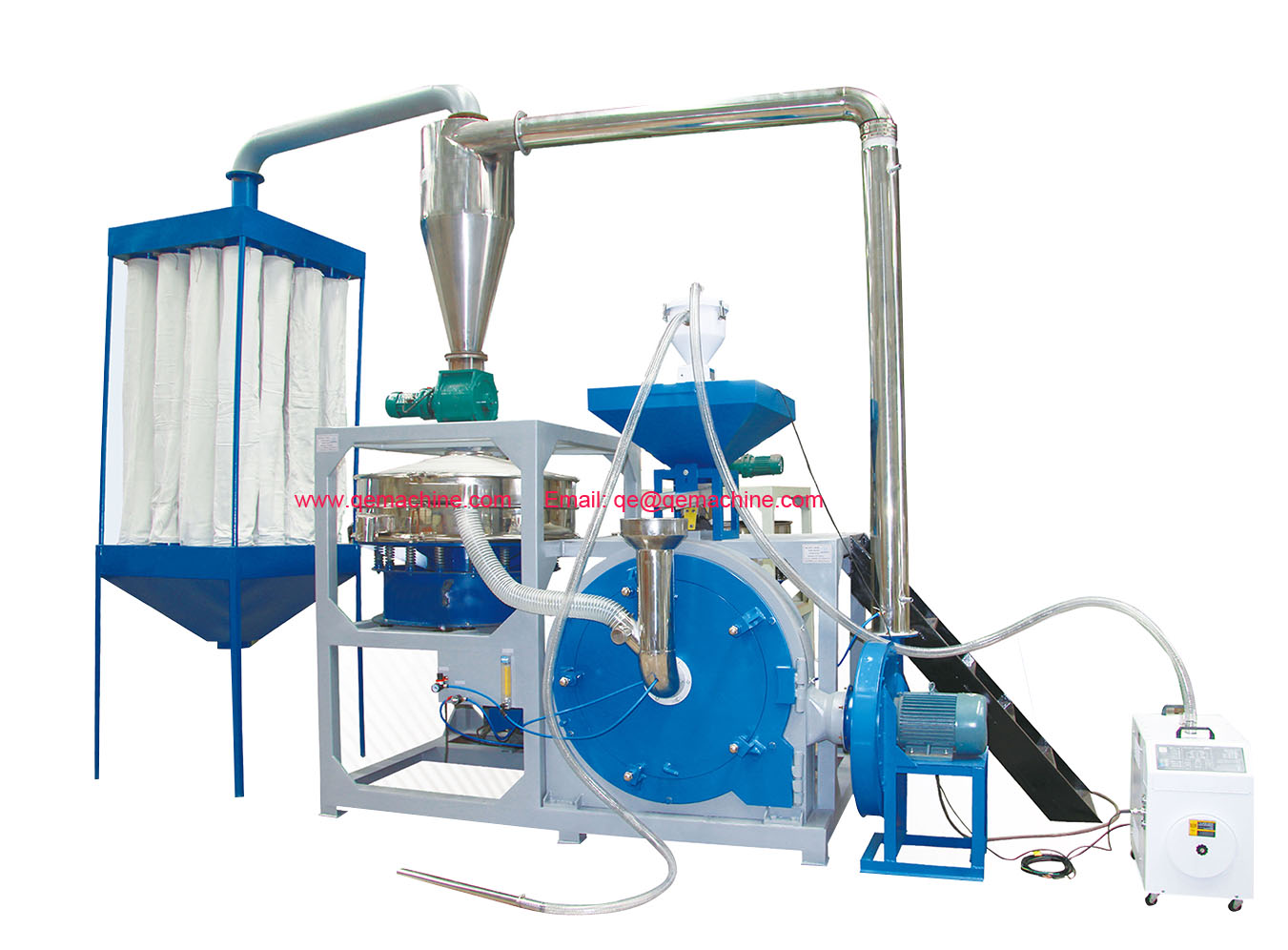

QMF series automatic plastic mill is disk-type plastic grinding mill series, which has the advantages of high capacity and low power, this machine can be used for powder processing of PE, PVC, PP,PS,ABS,Nylon,EVA, PET and other materials。

Inquiry

Features

the new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.

the newly designed professional bearings, is with a high rotation rate, at the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control

easy installation and maintenance just open the door to clean-up。

the whole milling process is sealed, without dust leakage 。

grinding gap adjustment is simple, just use the feeler gauge adn adjust bolts can be fine-tuning

the mill use the water and wind double cooling system, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface, material entered the grinding chamber as soon as caught, groud ,and hen rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

Specifications
ItemUnitQMF-300QMF-400QMF-500QMF-600QMF-800
Model-QMF-300QMF-400QMF-500QMF-600QMF-800
Grinding Disc Diametermm300400500600800
Main Motor PowerkW11-1522-3037-4545-5575-90
Vibrating Sieve Motor PowerkW0.750.750.751.11.5
Max. Processing Capacitykg/h30-5050-120100-300200-400400-800
