QS-Slow speed granulators

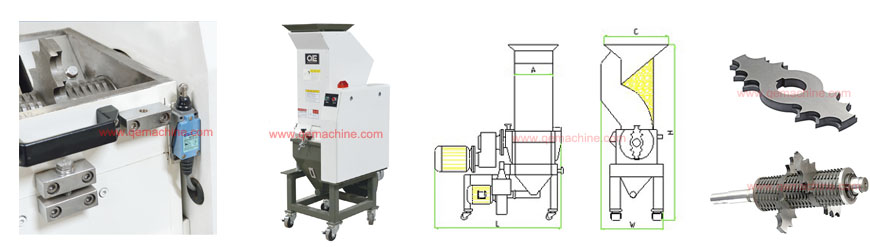

QS- Low-speed granulators

The system works with Hopper Dryer and sets beside the injection machine to collect the degraded material and scraps produced while injection molding. The regrinding is then conveyed by the blower to the mixing chamber with virgin material proportionally and melt in the plastic-melting chamber. Therefore, the waste materials are reclaimed right before their characteristics change so as to keep the quality, low waste and production cost.

Inquiry

Features

Low speed operation, low level of noise low power consumption.

Installed with a high quality gear motor. Machine’s function is stable, long life-span, the transmission torque is large.

Special design of the crushing blade let the crushed bits are in even size and minimized the dust generated during operation.

Blade is made of imported material, high efficiency in operation.

Motor is installed with overload protective device, connected to the power switch to ensure the machine and controller’s safety.

Equipped with auto-loading system to make sure the crushed bits are not be polluted, decrease work load, and increase efficiency.

The contour of the QS-25 is artistic, a strong structure, easy to install, easy and quick maintenance.

The base is installed with wheels, enable to move around.

CE safety standards

Specifications

Item	Unit	QS2530	QS3030	QS3040	QS3050
Model	-	QS2530	QS3030	QS3040	QS3050
Motor Power	kW	1.1	1.5	2.2	4
Main Shaft Rotating Speed	rpm	20	20	20	21
Blade Material	-	SKD-11	SKD-11	SKD-11	SKD-11
Quantity of Rotating Blades	pcs	2	2	3	3
Quantity of Fixed Blades	pcs	3	3	4	4
Quantity of Edge Blades	pcs	6	6	6	8
Cutting Chamber Dimensions	mm	250×300	300×305	305×415	380×480
Instantaneous Recycling System	-	√	√	√	√
Blower Conveying Device	-	√	√	√	√
Full Hopper Alarm Device	-	○	○	○	○
Net Weight	kg	240	270	320	500
Overall Dimensions (L×W×H)	mm	900×430×1420	1040×480×1480	1200×480×1500	850×610×1550

Notes:
1)"√"Stands for standard. "o" stands for optional.
2）SKD11 is steel grade of Japanese JIS standard.
4)To avoid plastic from sticking to the blades, all materials should be crushed at normal temperature.
5）Power supply: 3￠,110/220/230/380/400/415/440/460/480/575VAC,50/60HZ.
